Metal marking out tools

Question	Answer

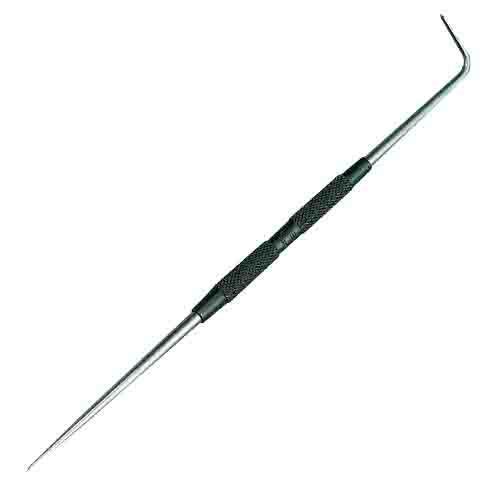

Image: E222 (image/jpeg)	Scriber Marking out lines

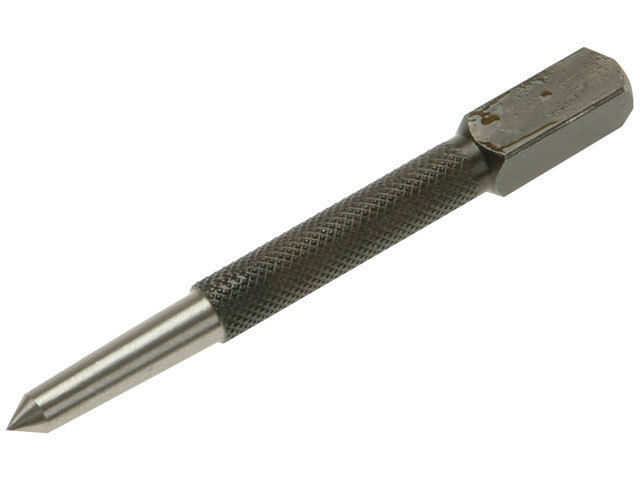

Image: Dot Punch (binary/octet-stream)	Dot punch Used to mark witness marks to cut and file to; usually along a scribed line.
Image: 34065 41 (image/jpeg)	Engineer's try square Lines at right angles to an edge
Image: Oddlegs Centring (image/jpeg)	Odd-leg calipers Lines parallel to an edge
Image: 34196 D62 (image/jpeg)	Dividers Marking a circle
Image: Pri44116 (image/jpeg)	Centre punch Marking the centre of a hole
Image: Sc44 (image/jpeg)	Template Marking an irregular shape
