Basics in ICT -logic gates

Question	Answer
What is a logic gate?	A logic gate is an elementary building block of a digital circuit which perform functions with low(0) or high(1) binary conditions.

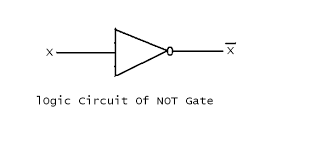

NOT Gate	Performs logical complementarity Image: 806a66b5-2417-48ea-95c6-2b50495d834d (image/png)
AND Gate	Performs logical multiplication Image: 8c27e690-13a7-426b-a90e-1ce67cb85771 (image/png)
OR Gate	Performs logical addition Image: 9c6d42a9-ffd1-494c-9571-61d4db08e2ad (image/png)
Exclusive OR Gate or XOR Gate	Image: 490e1dbf-b6b1-43b4-a5e9-72b7b543cd91 (image/png)
NAND Gate	performs NOT and AND operations. Image: a737b998-4871-4393-9a7c-3e47e974a223 (image/png)
NOR Gate	Performs NOT and OR operations. Image: 80bb8723-6082-46a2-8e01-c962730a4b75 (image/png)
XNOR gate	Performs XOR and Not Operations. Image: ecd93599-03ec-440e-aaa0-3a27df679a04 (image/png)
